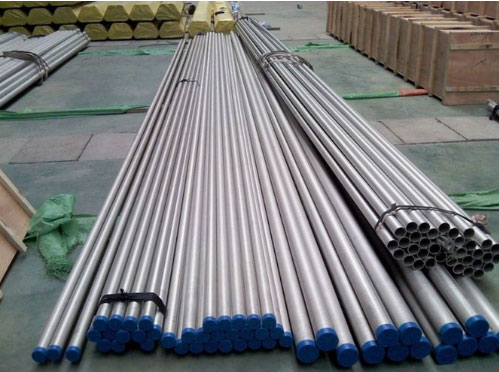

Incoloy Alloy 825 Pipes & Tubes


Material Description

UNS N08825

Chemical Composition, %


Ni

Fe

Cr

Mo

Cu

Ti

C

Mn

S

Si

Al

38.0-46.0

22.0 min

19.5-23.5

2.5-3.5

1.5-3.0

.6-1.2

.05 max

1.0 max

.03 max

.5 max

.2 max


Incoloy alloy 825 is a nickel-iron-chromium alloy with additions of molybdenum and copper. This nickel steel alloy’s chemical composition is designed to provide exceptional resistance to many corrosive environments. It is similar to alloy 800 but has improved resistance to aqueous corrosion. It has excellent resistance to both reducing and oxidizing acids, to stress-corrosion cracking, and to localized attack such as pitting and crevice corrosion. Alloy 825 is especially resistant to sulfuric and phosphoric acids. This nickel steel alloy is used for chemical processing, pollution-control equipment, oil and gas well piping, nuclear fuel reprocessing, acid production, and pickling equipment.

Characteristics

● Excellent resistance to reducing and oxidizing acids

● Good resistance to stress-corrosion cracking

● Satisfactory resistance to localized attack like pitting and crevice corrosion

● Very resistant to sulfuric and phosphoric acids

● Good mechanical properties at both room and elevated temperatures up to approximately 1020° F

● Permission for pressure-vessel use at wall temperatures up to 800°F


Application

● Chemical Processing

● Pollution-control

● Oil and gas well piping

● Nuclear fuel reprocessing

● Components in pickling equipment like heating coils, tanks, baskets and chains

Acid production


Seamless Tube Information:

Specification: ASTM B-163 / ASME SB-163, ASTM B-423 / ASME SB-423

Outside Diameter: 6.0-114 mm

Wall Thickness: 0.5-15 mm

Length: Max.24000mm (the maximum length is for the scope of special diameters and walls)

Other sizes are on the request
