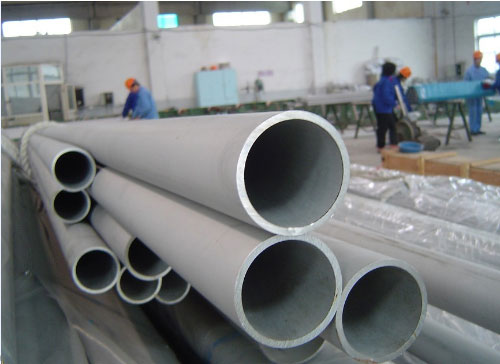

Home > Stainless Steel Pipes & TubesTP304LN Stainless Steel Pipes & Tubes
Material Description
EN Number 1.4311
Chemical Composition, %
C
Mn
P
S
Si
Cr
Ni
.035
2.0
.045
.03
1.0
18.0-20.0
8.0-11.0
TP304LN is an austenitic stainless steel with low carbon content alloyed with nitrogen.
Corrosion Resistance
TP304LN stainless has good resistance to atomosperic resistance. Like
TP304L, TP304LN is resistant to wide variety if inorganic chemicals as
well as nitric acid.
TP304LN has good intergranular corrosion in the as-annealed and
as-welded condition due to its low carbon content. Some intergranular
attack may occur in the hot rolled unannealed condition.
Application
UNS S30453
Heat exchanger tubing, condenser tubing, pipelines, cooling and heating coils in the chemical, petrochemical, fertiliser, pulp and paper and nuclear power industries, as well as in the production of pharmaceuticals, foods and beverages.
Seamless Tube Information
Specification: ASTM A-213 / ASME SA-213, ASTM A-269 / ASME SA-269, ASTM A312 / ASME SA312, EN10216-5, DIN17458
Outside Diameter: 6.0-406 mm (1/4’’ – 16’’)
Wall Thickness: 0.5-35 mm (0.0196’’ – 1.378’’)
Length: Max.33000 mm (the maximum length is for the scope of special diameters and walls)
Other sizes are on the request
