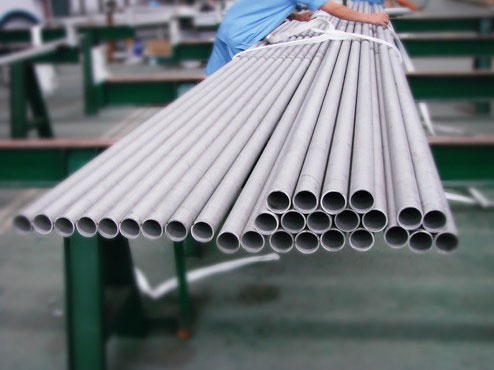

TP316L Stainless Steel Pipes & Tubes

Material Description UNS S31603 EN Number 1.4404, 1.4435 Chemical Composition, % C Mn P S Si Cr Ni Mo .035 2.0 .045 .03 1.0 16.0-18.0 10.0-14.0 2.0-3.0 TP316L is an austenitic chromium-nickel stainless steel with molybdenum and a low carbon content. Corrosion Resistance ● Organic acids at high concentrations and moderate temperatures ● Inorganic acids, e.g. phosphoric and sulphuric acids, at moderate concentrations and temperatures. The steel can also be used in sulphuric acid of concentrations above 90% at low temperature. ● Salt solutions, e.g. sulphates, sulphides and sulphites

Austenitic steels are susceptible to stress corrosion cracking. This may occur at temperatures above about 60°C (140°F) if the steel is subjected to tensile stresses and at the same time comes into contact with certain solutions, particularly those containing chlorides. Such service conditions should therefore be avoided. Conditions when plants are shut down must also be considered, as the condensates which are then formed can develop conditions that lead to both stress corrosion cracking and pitting.

TP316L has a low carbon content and therefore better resistance to intergranular corrosion than steels of type TP316.

Application

TP316L is used for a wide range of industrial applications where steels of type TP304 and TP304L have insufficient corrosion resistance. Typical examples are: heat exchangers, condensers, pipelines, cooling and heating coils in the chemical, petrochemical, pulp and paper and food industries.

Seamless Tube Information

Specification: ASTM A-213 / ASME SA-213, ASTM A-269 / ASME SA-269, ASTM A312 / ASME SA312, EN10216-5, DIN17458

Outside Diameter: 6.0-406 mm (1/4’’ – 16’’)

Wall Thickness: 0.5-35 mm (0.0196’’ – 1.378’’)

Length: Max.33000 mm (the maximum length is for the scope of special diameters and walls)

Other sizes are on the request
