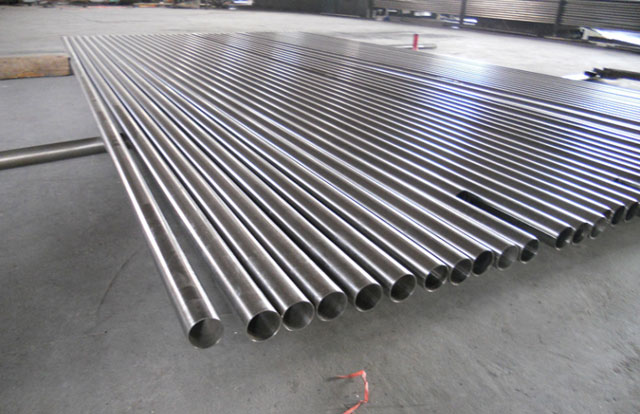

Zirconium 702 (Zr 702) Pipes & Tubes


Material Description

UNS R60702

Chemical Composition, %


Zr + Ha

Ha

Fe + Cr

H

N

C

Nb

O

99.2 min

4.5 max

.2 max

.005 max

.025 max

.05 max


.16 max

Zirconium 702 is commercially pure zirconium


Corrosion Resistance

No metal or alloy is resistant to corrosive attack in all chemical environments. Zirconium is no exception, but it does have excellent resistance to a wide variety of chemicals. Zirconium has outstanding resistance to hydrochloric acid, sulfuric acid, organic acids, and alkaline media such as sodium hydroxide. Its resistance to nitric acid is equalled only by the noble metals such as tantalum.
The most common application areas for cast zirconium equipment are in hydrochloric acid, sulfuric acid, and hot organic acids. Zirconium shows excellent corrosion resistance to all concentrations of hydrochloric acid even at temperatures exceeding the normal boiling point. However, zirconium is not resistant to hydrochloric acid containing oxidizing species such as cupric chloride, ferric chloride, or wet chlorine. Zr 702 is resistant to sulfuric acid concentrations up to 70 percent. Poor resistance is obtained with higher concentrations, even at room temperature. Zirconium is superior to stainless steels, nickel alloys, and titanium in organic acids. This alloy is considered for these applications at high temperatures where its marked superior- ity results in a distinct economic advantage. Zirconium has poor resistance to concentrated sulfuric acid, hydrofluoric acid, concentrated phosphoric acid, ferric chloride, cupric chloride, wet chlorine, and other oxidizing chloride environments.


Seamless Tube Information

Specification: ASTM B-523 / ASME SB-523, ASTM B-658 / ASME SB-658

Outside Diameter: 6.0-114 mm

Wall Thickness: 0.5-15 mm

Length: Max.24000mm (the maximum length is for the scope of special diameters and walls)

Other sizes are on the request
